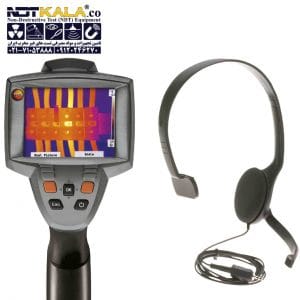

دوربین حرارتی تستو TESTO 882
دوربین حرارتی تستو TESTO 882
دوربین حرارتی تستو TESTO 882 آلمان دستگاهی بسیار جدید با قیمت مناسب است. این دستگاه ترموویژن ترموگرافی تستو 882 جهت مشخص شدن مقدار و میزان حرارت اجسام ارائه می نماید.
کاتالوگ دوربین حرارتی ترموویژن ترموگرافی تستو TESTO 882
ویژگی های دوربین حرارتی تستو TESTO 882 :
- سایز ردیاب 240×320
- حساسیت حرارتی دستگاه 50 mk
- محاسبه دما تا رنج 550 درجه C
- محتویات دستگاه: دستگاه باکیفیت حمل- کارت SD کابل USB- باتری قابل شارژ- آدابتور سه پایه- پارچه تنظیف لنز
- سوپر رزولیشن دستگاه 4880*640 p
- فوکوس به صورت اتوماتیک و دستی
- فرکانس 33 هرتز
- حافظه SD 2G
Termovisores garantia | |
---|---|
EU-/EG-guidelines | 2004/108/EG |
Infrared image output | |
---|---|
Infrared resolution | 320 x 240 pixel |
Thermal sensitivity | 50 mK |
Field of view | 32° x 23° |
Minimum focus distance | 0.2 m |
Geometric resolution (IFOV) | 1.7 mrad |
SuperResolution (Pixel) | 640 x 480 pixels |
SuperResolution (IFOV) | 1.1 mrad |
Image refresh rate | 33 Hz |
Focus | manual and motor focus |
ادامه مشخصات
Image output visual | |
---|---|
Image size | 640 x 480 pixels |
Minimum focus distance | 0.4 ft. / 0.4 m |
Image presentation | |
---|---|
Display type | 3.5″ LCD with 320 x 240 pixels |
Display option | IR image only; Real image only; IR image / real image |
Color palettes | 10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT) |
Video output | USB 2.0 |
Measurement | |
---|---|
Measuring range | 662°F |
High temperature measuring | 1022°F Optional |
Accuracy | ±2 °C,; ±2% of mv / (±3% of mv at +350 to +550 °C) |
Reflected temperature | manual |
Measurement |
Measuring function | |
---|---|
Surface moisture distribution | Included |
Humidity measurement | Optional |
Solar mode | Included |
Analysis function | Up to 2 measurement points, hot/cold spot recognition, isotherms, area measurement (min/max on area) |
Imager equipment | |
---|---|
Power-LED | Included |
Video streaming | Included |
Voice recording | wired headset |
Standard lens | 32° x 23° |
Digital camera | Included |
Laser | Included |
Imager storage | |
---|---|
File format image | .bmt; software export option in .bmp; .jpg; .png; .csv; .xls |
Storage device | SD card 2 GB (approx. 1.000 images) |
Power supply | |
---|---|
Battery type | Fast-charging, Li-ion battery can be changed on-site |
Operating time | 4.0 hr |
Charging options | In instrument / USB charger |
Power supply | yes |
Ambient Condition | |
---|---|
Storage temperature | -22 °F; 140 °F / -30 °C; 60 °C |
Operating temperature | 5 °F; 104 °F / -15 °C; 40 °C |
Air humidity | 20 to 80 %RH non-condensing |
Housing protection class | IP54 |
Vibration | 2G |
Physical specification | |
---|---|
Weight | 31.747 oz. / 900 g |
Tripod mounting | M6 |
Housing | ABS |
Dimensions | 6 x 108 x 262 / 152 x 108 x 262 |
PC software | |
---|---|
System requirements | Windows XP (Service Pack 3); Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0 |
