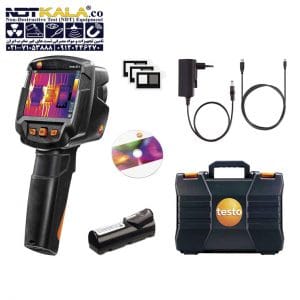

دوربین ترموویژن تستو TESTO 871 ساخت کشور آلمان با ماژول بی سیم WLAN/BT، کابلUSB منبع تغذیه باطری قابل شارژ لیتیوم یون، نرم افزار حرفه ای، دفترچه راهنما، پروتکل کالیبراسیون و سه عدد برچسب ضریب تابش 4 یک دستگاه دوربین حرارتی و ترموویژن بسیار قدرتمند با رزولیشن بالا میباشد که در تاسیسات و ساختمان و صنایع دیگر جهت آنالیز حرارتی و یا بررسی اتلاف انرژی حرارتی استفاده میگردد.ان دی تی کالا نماینده تستو TESTO در ایران آماده عرضه بهترین محصولات تستو میباشد.
این محصولات و مابقی محصولات در این حوضه را میتوانید در دسته ترموویژن تستو Testo به راحتی مشاهده کنید.
ارسال اطلاعات اندازه گیری توسط کلمپ متر testo770-3 و دستگاه رطوبت سنج testo605i به دوربین حرارتی بطور بی سیم، دارای قابلیت های assist testo و testo scale assist.
ویژگی فنی و ظاهری دوربین ترموویژن حرارتی تستو TESTO 871:
Termovisores garantia
EU-/EG-guidelines
RED: 2014/53/EU; EMC: 2014/30/EU
Infrared image output
Infrared resolution
240 x 180 pixels
Thermal sensitivity
90 mK
Field of view
35° x 26°
Minimum focus distance
<0.5 m
Geometric resolution (IFOV)
2.6 mrad
SuperResolution (Pixel)
480 x 360 pixels
SuperResolution (IFOV)
1.6 mrad
Image refresh rate
9 Hz
Focus
Fixed focus
Spectral range
7.5 to 14 µm
{Image output visual}
Image size
at least 3.1 MP
Minimum focus distance
0.5 m
Image presentation
Display type
8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels)
Display option
IR image / real image
Colours
4 (iron, rainbow, cold-hot, grey)
Measurement
Measuring range
-30 to +100 °C; 0 to +650 °C
Accuracy
±2 °C, ±2 % of mv
Emissivity
0.01 to 1
Reflected temperature
manual
testo ε-Assist
Included
Measuring function
Solar mode – manual
Input of solar radiation value
Analysis function
Mean point measurement, hot/cold-spot recognition, Delta T
Electrical mode – manual
Input of current, voltage or power
IFOV warner
Included
Humidity mode – manual
Included
testo ScaleAssist
Included
Humidity measurement with humidity measuring instrument
Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately)
Electrical measurement with clamp meter
Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately)
Imager equipment
Full screen mode
Included
JPEG storage
Included
Video streaming
via wireless LAN with testo Thermography App
Standard lens
35° x 26°
Digital camera
Included
Interface
USB 2.0 Micro B
WLAN Connectivity
Communication with the testo Thermography App wireless module BT/WLAN (EU, EFTA, USA, AUS, CDN, TR)
Bluetooth
Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional) Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey”
Imager storage
File format image
.bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls
Storage device
Internal Memory (2.8 GB)
Power supply
Battery type
Fast-charging, Li-ion battery can be changed on-site
