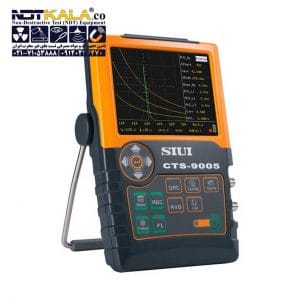

عیب یاب التراسونیک SIUI CTS-9005 با استاندارد IP65 بسیار مناسب است برای محیط های مرطوب و پر گرد و غبار. از ویژگی های دستگاه عیب یاب التراسونیک UT برند SIUI CTS-9005 قابلیت رسم منحنی DAC و ABG(DGS) می توان نام برد.

ویژگی های SIUI CTS-9005:

• مطابق استاندارد CTS-9005
• قابلیت رسم منحنی DAC و (DGS) AVG
• توانایی تفسیر عیب ها مطابق استاندارد AWS D.1.1 و اندازه گیری مقدار D
• صفحه نمایش رنگی و پورت USB
• قابلیت ذخیره 500 داده و انتقال داده به کامپیوتر
• انتقال اطلاعات به فلش مموری
• وزن دستگاه 15 kg
• تاییدیه از شرکت معتبر SGS سوئیس
• متعلقات: دستگاه ،باطری،کیف حمل چرمی ،شارژر و کابل، دفترچه راهنما، کیف حمل سامسونت
• پراب با توجه به نوع و زاویه و فرکانس جداگانه عرضه می گردد.
• ان دی تی کالا، نمایندگی SIUI در ایران

•  Max. sampling rate 240MHz; Measurement resolution 0.1mm.
•  Operating frequency range: 0.5~10MHz.
•  20~2000Hz (step: 20Hz): avoid reverberation signals during flaw detection.
•  The AGC (auto gain control) function for efficient flaw detection.
•  The AVG/DGS curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
•  The 5.7” color TFT LCD of wide viewing angle, high brightness and high definition delivers every clear detail.
•  Peak memory function facilitates quick scanning and measurement on workpieces.
•  Three different color schemes can meet the requirements of different application environments and habits.
•  Up to 300 sets of curve and waveform can be saved for various work pieces and flaw detection standards.

• SIUI CTS-9005 DIGITAL ULTRASONIC FLAW DETECTOR

Testing Index
Attenuator Error dB Every 12dB ±1dB
Vertical Linearity Error % ≤3
Dynamic Range dB ≥32
Horizontal Linearity Error % ≤0.5
Pulser
PRF Hz 20~2000Hz, step: 20Hz
Damping Low /High
Receiver
Operating Frequency Range MHz
Reject % 0 ~ 80
Gain Adjustment dB 0 ~ 110, with steps of 0.5 / 2 / 6 / 12
Measurement
Detection Range mm 0 ~ 13000 (Longitudinal wave in steel)
Display Delay mm -10 ~ 1000 (Longitudinal wave in steel)
Rectify Positive, Negative, Full, Filter
Auto Gain Enabling the echo amplitude within the gate auto adjusted to a designated amplitude
Amplitude setup: 80% / 100%
Angle Measurement Measure probe angle
Material Velocity m/s 400 ~ 15000
Probe Zero µs 0 ~ 200
Auto Calibration For calibrating material velocity and probe delay.
Calibration mode: Velocity and Zero
DAC Curve For making, setting and applying DAC curves, up to 8 curves
AVG / DGS Curve For making, setting and applying AVG / DGS curves
Screenshot Print the system screen as an image and output to a USB disk
Parameter Output Save the screen measurement parameters to a USB disk
Peak Memory Display waveform envelope
Freeze Freeze screen waveforms
Zoom Screen waveform area zoom-in and zoom-out
Dual Probe Single / Dual
USB Port Save the system internal data sets to a USB disk via the USB port
Alarm Off / On, enabling and disabling the buzzer alarm
Gate
Gate
Two measure alarm gates.
General Technical Specification

Display Screen 5.7” high brightness TFT LCD, 320 x 240 pixels
Measure Unit Inch/ mm
Language Up to nine kinds of language for selection, including Chinese, English, Japanese, French, Spanish, Russian, German, Portuguese, Polish
Power Supply 12 DC (external power supply); 7.4 (battery)
Battery Operating Time h ≥ 7 (Backlight brightness dependent. The brightness will be adjusted automatically according to environment temperature.)
Operating Temperature ℃ -10~40
IP Code IP65
Weight kg Approx. 1.2 (including battery)
Dimension mm 152 × 240 × 52 (W×H×L)
